Removing and installing/replacing intake camshaft (B48A/B46A) (Cooper S and John Cooper Works)

Special tools required:

Preliminary work needed:

Removal:

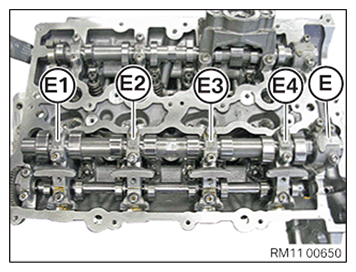

NOTE: The bearing caps are legibly labeled with (E1 - E4) on the intake side.
Bearing cap (E) is a thrust bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

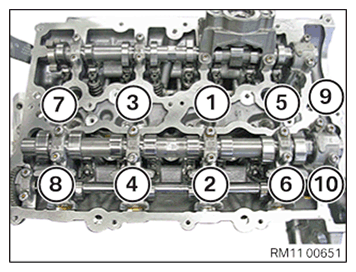

Release all screws on bearing caps in the sequence 10 - 1 in 1/2 turns.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480.

Fig 1: Bearing Caps Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

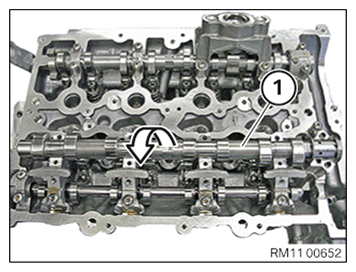

Take intake camshaft (1) out of cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

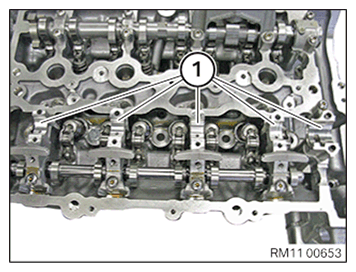

Moisten all bearing positions (1) with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

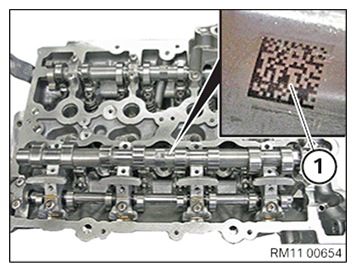

Engage intake camshaft in cylinder head so that data code (1) is pointing upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

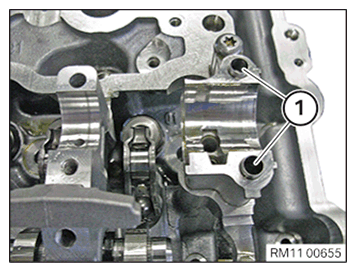

NOTE: Check adapter sleeves (1) for damage and firm seating.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat intake camshaft and bearing shells with motor oil.

Position all bearing shells on cylinder head.

NOTE: The bearing caps are legibly labeled with (E1 - E4) on the intake side.
Bearing cap (E) is a thrust bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 8.8.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 10.9.

Courtesy of BMW OF NORTH AMERICA, INC.

Press down on the bearing caps and hand tighten the screws incrementally in the sequence 1 - 10.

Join the screws in the sequence 1 - 10 in half turns.

Observe the joining torque 11 31 1AZ . .

Tighten all screws in the sequence 1 - 10.

Tightening torque 11 31 1AZ . .

Fig 2: Bearing Caps Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
