Removing the manual transmission from the engine

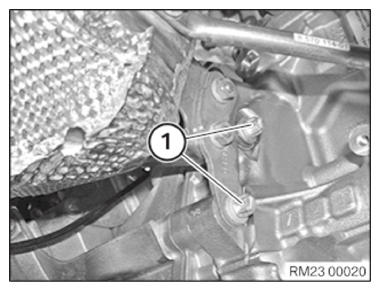

- Loosen screws (1)
.

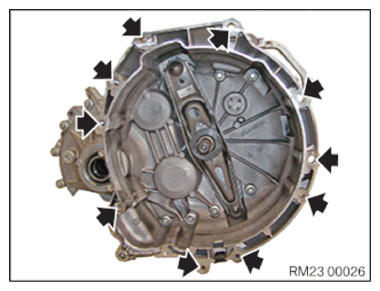

- Remove screws (arrows).

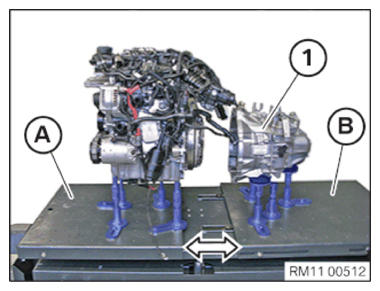

- Move the table top (B)
In the arrow direction away from the table top (A)
and move the manual transmission (1)
to the side.

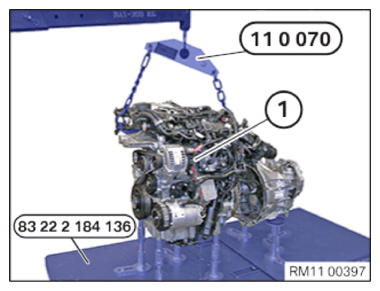

- Attach the engine hoist with the special tool 0 490 579 (11 0 070)and raise the engine (1) from the lifting
table.
