Removing the catalytic converter (engine removed)

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

If installed: Removing the differential pressure sensor with the pressure line

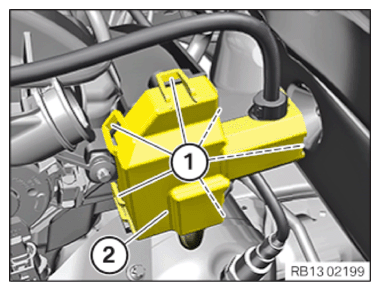

Unlock the detents (1) carefully.
Guide out and remove the cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

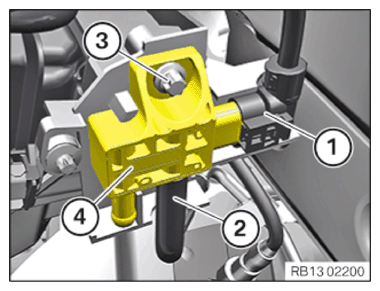

Unlock plug connection (1) and disconnect.
Disconnect the pressure hose (2).
Loosen screw (3).
Feed out differential pressure sensor (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A

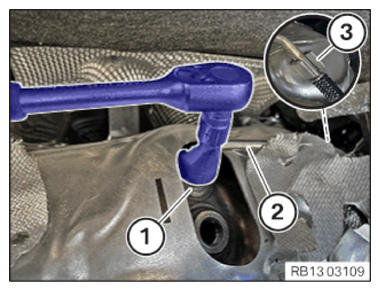

Release the union nut (1) with special tool 5 A19 557.

Feed the pressure hose (2) out of the holder (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B

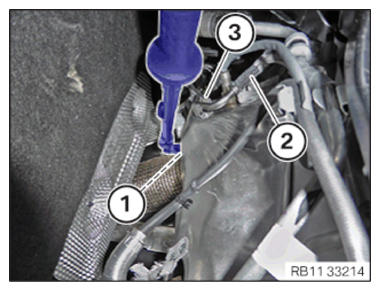

Release the union nut (1) with special tool 5 A19 557.

Feed the pressure hose (2) out of the holder (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

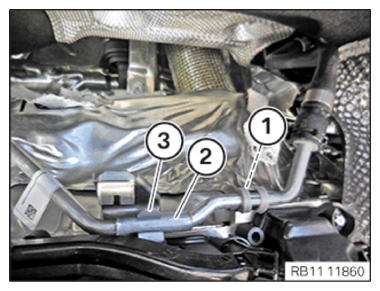

Loosen screw (1) .
Feed out coolant line (2) from the holder (3) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

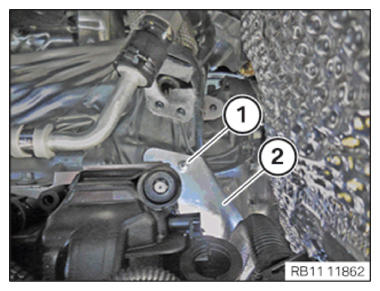

Loosen screw (1) .
Feed out and remove the heat shield (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
Feed out heat shield (2) on the exhaust turbocharger at the top and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

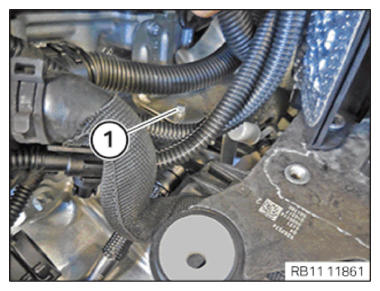

Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

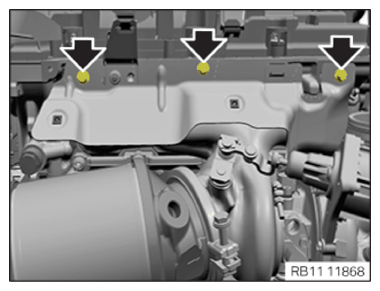

Remove screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

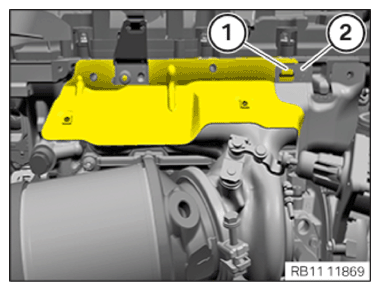

Feed out heat shield (1) from the heat shield (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

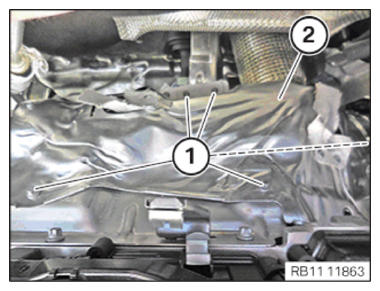

Loosen screws (1) .
Feed out the exhaust duct (2) at the bottom and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Feed out the exhaust duct (2) at the top and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen V-band clamp (1) .
Loosen the nuts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the catalytic converter (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Removing the differential pressure sensor with the pressure line

Unlock the detents (1) carefully.
Guide out and remove the cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Disconnect the pressure hose (2) .
Loosen screw (3) .
Feed out differential pressure sensor (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A
Release the union nut (1) with special tool 5 A19 557 .

Feed the pressure hose (2) out of the holder (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B
Release the union nut (1) with special tool 5 A19 557 .

Feed the pressure hose (2) out of the holder (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen V-band clamp (1) .
Loosen the nuts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the catalytic converter (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
