Install left and right wiper arm
Install left and right wiper arm

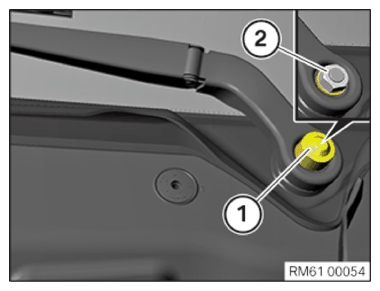

Install wiper arm
NOTE:
Description is for left component only. Procedure on the right side is identical.
Position wiper arm and tighten it with nut
(2)
.
TIGHTENING TORQUE SPECIFICATIONS
Windshield wiper arm
Nut
Tightening torque
35Nm
Mount the protective cap
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
