Connect coolant line
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

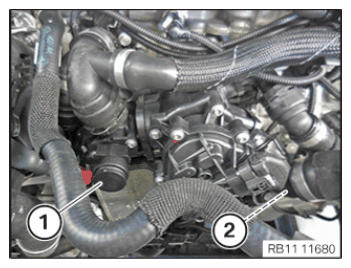

- Connect closure (1) and lock.
The closure (1) must engage audibly.
- Connect and lock coolant line (2).
The coolant line (2) must audibly engage.
Follow-up work
- Refer to INSTALL FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT .
- Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENT THE COOLING CIRCUIT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
