Remove the electric wastegate valve actuator

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

NOTE: TECHNICAL INFORMATION
Rattling noises in the engine compartment are caused due to increased play in the linkage of the wastegate valve controller.
To eliminate the rattling noises, a repair kit 5A7A286 for the wastegate linkage with a modified spring and an additional spacer sleeve can be ordered from the applicable BMW parts catalogue.
It is not necessary to replace the entire electrical wastegate valve controller .

Preliminary work

Refer to REMOVING REAR HOOD SEAL .
Refer to REMOVING FRONT WINDSHIELD PANEL COVER .
Refer to REMOVING SUSPENSION CROSS-BRACE .
Refer to REMOVING THE UPPER BULKHEAD COVER PANEL .
Refer to REMOVING THE REAR BULKHEAD .
Refer to REMOVING INTAKE PORT .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING CLEAN AIR PIPE .
Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
Refer to REMOVING THE SYSTEM BATTERY .
Refer to REMOVING E-BOX .
Refer to REMOVING BATTERY CARRIER .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
Refer to REMOVING THE OXYGEN SENSOR MONITOR .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING FRONT RIGHT WHEEL .
Refer to REMOVING HEAT SHIELD AT UPPER EXHAUST TURBOCHARGER .

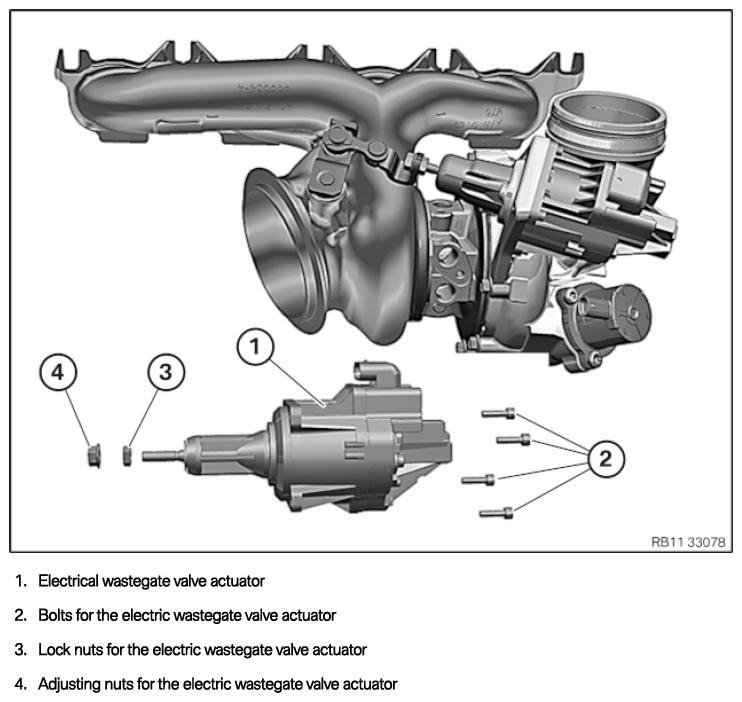

Electrical wastegate valve actuator

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

Have the special tool 2 469 240 ready.

Courtesy of BMW OF NORTH AMERICA, INC.
Close the exhaust turbocharger (2) with standard tools (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen connector (1).
Release the color (2) using commercially available tools.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The adjustment nuts must be locked using 2 open-end wrenches. If only one open-end wrench is used, there is a risk of the electrical controller drive being damaged.
Counter support the nut (1) with an open-end spanner (3).
Release the nut (2) with an open-end spanner (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Thread out the nut (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the lever (1) of the wastegate valve carefully in the arrow direction out from the control rod (2) of the electrical wastegate valve controller and set aside.
Any effect of lateral force on the control rod (2) of the electrical wastegate valve controller must be avoided.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew and thread out nuts (1) of the wastegate valve carefully

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the electrical wastegate valve controller (1) without the heat shield (2) in the arrow direction carefully from the bore of the compressor housing (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether heat shield 1 is seated firmly on compressor housing 2.
If the heat shield is loose, the exhaust turbocharger must be replaced.
Parts: Exhaust turbocharger
