72 11 099 Removing and installing/replacing both rear lower straps

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Removal:

Unlock and disconnect the connector (1).

Unfasten screws (2 and 3).

Remove seat belt buckles (4 and 5).

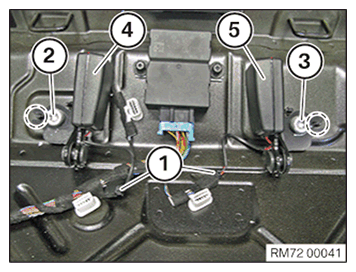

Fig 1: Seat Belt Buckles, Screws, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install seat belt buckles (4 and 5).

NOTE: Seat belt buckles (4 and 5) are encoded to prevent incorrect assembly.

Replace the screws (2 and 3).

Tighten down screws (2 and 3).

Tightening torque 72 11 23AZ .

Connect the connector (1).

Fig 2: Seat Belt Buckles, Screws, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
