72 11 092 Removing and installing/replacing rear left or right seat belt

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Removal:

Release screw (1).

Remove end fitting (2).

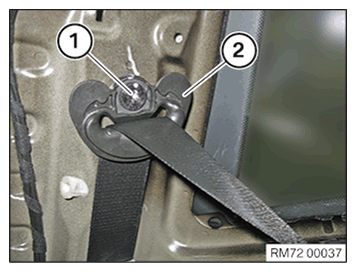

Fig 1: Screws And End Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Take off the seat belt guide loop (2) with seat belt strap.

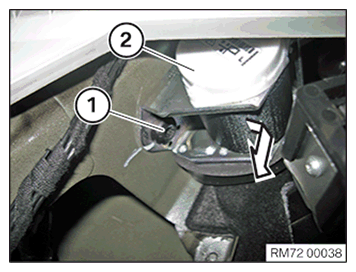

Fig 2: Seat Belt Guide Loop And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Feed out automatic reel (2) upwards to the front.

Remove seat belt.

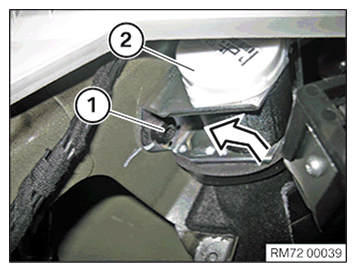

Fig 3: Removing Automatic Reel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install automatic reel (2) downwards to the rear.

NOTE: Make sure guide is correctly fitted in body.

Automatic reel (2) is encoded against incorrect installation.

Renew screw (1).

Tighten screw (1).

Tightening torque 72 11 20AZ .

Fig 4: Installing Automatic Reel

Courtesy of BMW OF NORTH AMERICA, INC.

Install the seat belt guide loop (2) including the seat belt strap.

Renew screw (1).

Tighten screw (1).

Tightening torque 72 11 21AZ .

Fig 5: Seat Belt Guide Loop And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Mount end fitting (2).

NOTE: End fitting (2) is encoded to prevent incorrect assembly.

Renew screw (1).

Tighten screw (1).

Tightening torque 72 11 22AZ .

Fig 6: Screws And End Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
