41 31 100 Replacing the roof outer skin including the panorama glass roof: Notes

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

STRIP DOWN vehicle.

Observe procedure for REPAIR STAGE 2 .

The following new parts are required.

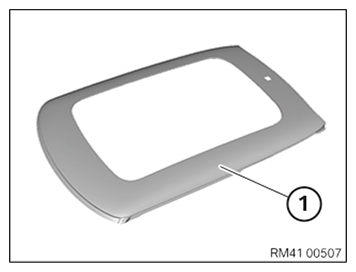

(1) Roof outer skin, panorama glass roof

Fig 1: Roof Outer Skin, Panorama Glass Roof

Courtesy of BMW OF NORTH AMERICA, INC.

The following CONSUMABLES are required:

Material	Quantity
Adhesive K5a	2
Adhesive K5b	1
Blind rivet N3	2
Punch rivet N4	14
Cleaning agent R1	1
Sealant D2	1

Removal

NOTE:

Operation is partially described on the left side.

Right side is identical.

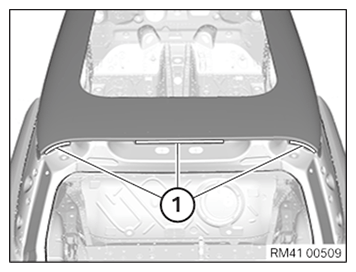

Open WELDED CONNECTIONS in area (1).

Fig 2: Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open WELDED CONNECTIONS in areas (1).

Fig 3: Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

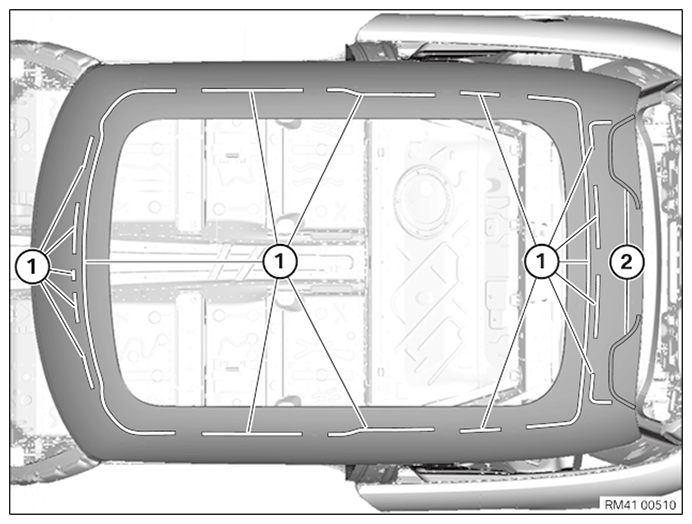

Open bonded connection in areas (1).

Release and remove roof outer skin from cavity sealings (2) and remove.

Fig 4: Bonded Connection Areas And Cavity Sealings

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

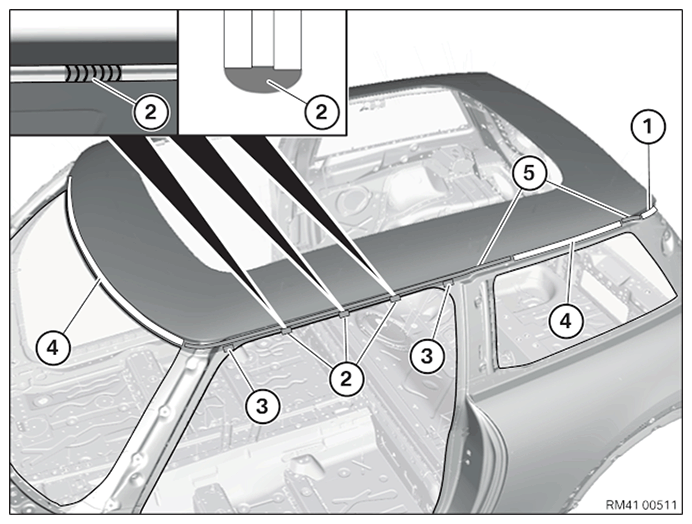

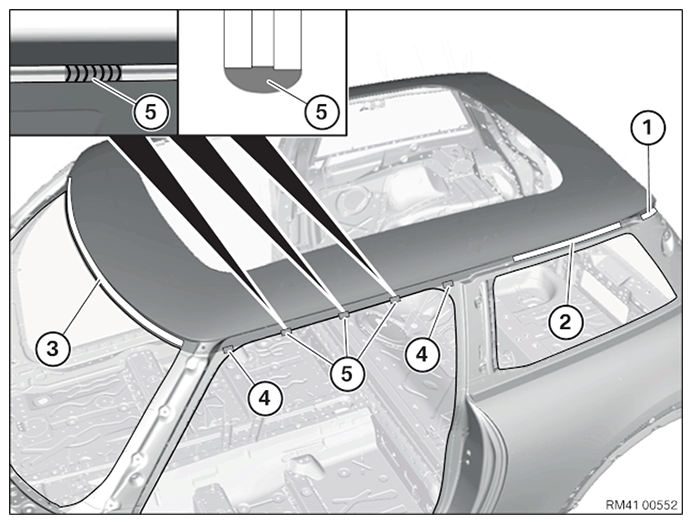

In area (1) drill a Ø 4.2 mm bore hole for blind rivet.

Prepare areas (2) and (3) for metal active gas weld seams with a length of 15 mm each.

Installation note:

The metal active gas weld seams (2) will be carried out on the front of the sheet metal flange (3 panels).

In the areas (4), the rivet-and-bonding method is used.

In the areas (5), the bonding method is used.

Fig 5: Areas For Bore Hole, Bonding, MAG Welding, And Riveting-Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

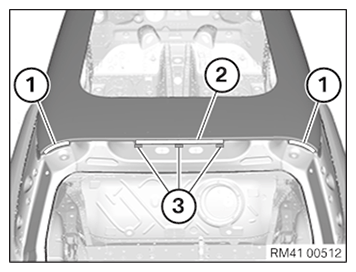

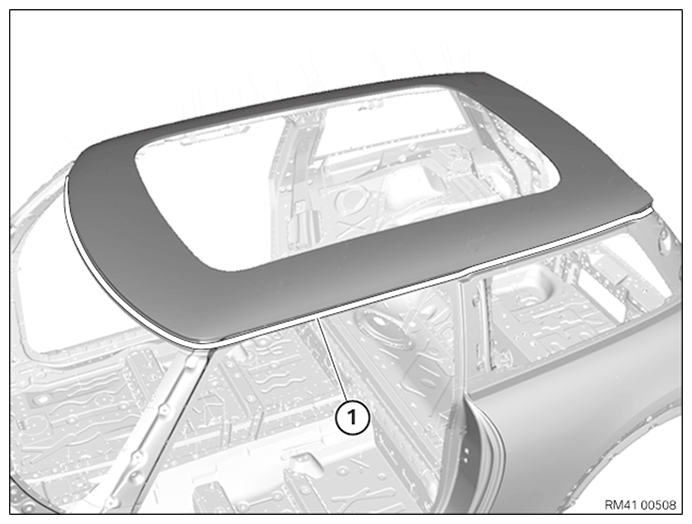

Prepare the procedure for joining via bonding method in the areas (1) and (2).

The area (2) must be prepared for additional metal active gas weld seams (3) with a length of 15 mm.

Remove roof outer skin and deburr bore holes.

Fig 6: MAG Welding And Bonding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Do not grind/sand new part in area of bonding surfaces.

Installation

NOTE: Comply with the application time!

Two persons are required to apply the adhesive and the sealant.

Clean all bonding surfaces with cleaning agent R1.

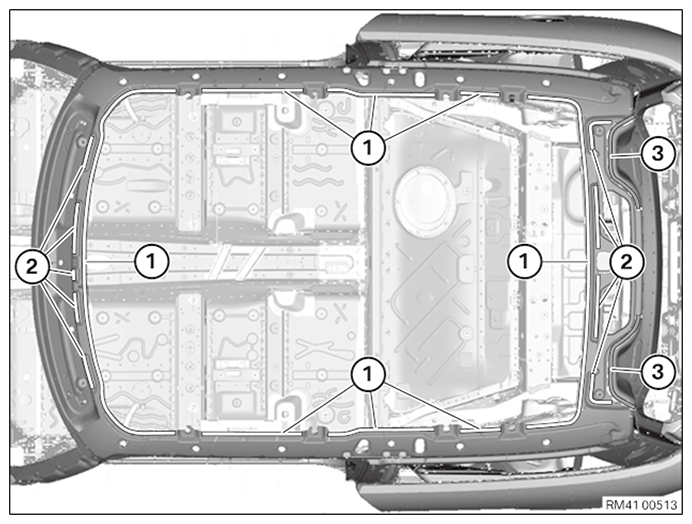

Apply adhesive in areas (1). Amount of adhesive: Same as for series production parts.

In these areas (2) and to seal cavities (3), apply the sealant D2 the same as for series production parts.

Fig 7: Adhesive Application And Sealant Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

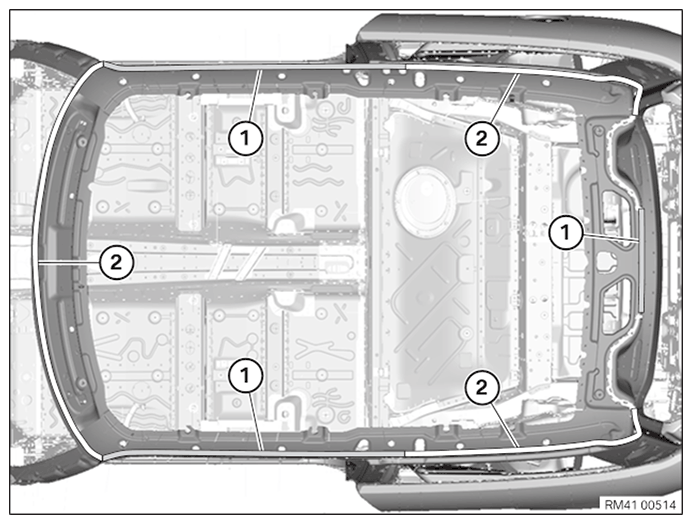

Apply adhesive in areas (1) and (2).

Fig 8: Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

The areas (1) require a sufficient distance between the applied adhesive and the future metal active gas welded seams! Distance depending on the adhesive 2 - 3 centimeter.

Install roof outer skin and rivet with blind rivets N3 in area (1).

Use punch rivets N4 in the areas (2) and (3).

Area	Number
2	3
3	8

In areas (4) and (5), set metal active gas weld seams with a length of 15 mm.

In the areas (5), set the metal active gas weld seams on the front.

Fig 9: Areas For Rivets And MAG Welding

Courtesy of BMW OF NORTH AMERICA, INC.

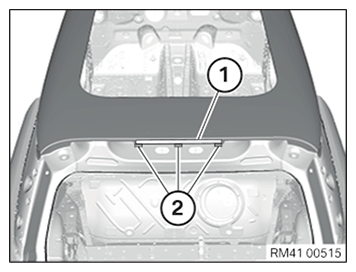

Set 3 metal active gas weld seams (2) with a length of 15 mm in the area (1).

NOTE: Slightly grind the metal active gas weld seams.

Attention! Do not thin section the metal active gas weld seams and the new part!

Fig 10: MAG Weld Seams

Courtesy of BMW OF NORTH AMERICA, INC.

Adapt step (1) between roof outer skin (2) and A-pillar with emerging adhesive. Remove excess adhesive.

Fig 11: Roof Outer Skin And Step

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Do not use any cleaning agents containing solvents.

Do not leave any sharp edges as this could compromise the tightness of the subsequent bonding of the windscreens.

Remove excess adhesive from other adhesive areas.

Attention !

Do not use any cleaning agents containing solvents.

Seal adhesive areas and blind rivets with sealant D2.
