(41 12 700 Stripping operations - Replacing luggage compartment floor and left side member (rear side panel and tail panel removed))

WARNING: This page is about a different variant/trim than selected.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove the rear left spring strut shock absorber (33 52 010)

Release nuts and remove heat shield (1).

Release grommets (2).

Detach wiring harness at attachment points (3).

Installation note:

Ensure correct installation of the grommets (watertightness).

Fig 1: Heat Shield And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove exhaust system holder.

Tightening torque 18 20 2AZ .

Fig 2: Exhaust Bracket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release holder (2) and lay towards front.

Release wiring harness at attachment point (3).

Release grommets (4).

Fig 3: Grommets, Holder, Attachment Point For Wiring Harness, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

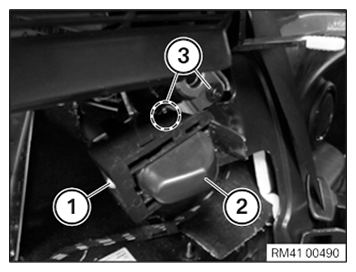

Release screw (1) and remove unlocking mechanism (2).

Release screws (3) and remove brackets.

Tightening torque 52 26 3AZ .

Fig 4: Unlocking Mechanism And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

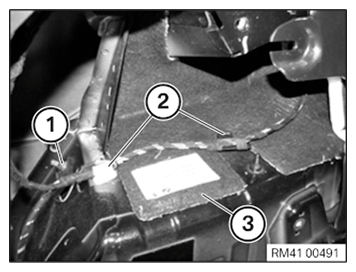

Release nut (1) for ground connection.

Tightening torque 41 34 1AZ .

Place the insulating mat (3) forward.

Fig 5: Ground Connection Nut And Insulating Mat

Courtesy of BMW OF NORTH AMERICA, INC.
