51 49 015 Removing and installing/replacing the cover for the rear window frame at top

WARNING: This page is about a different variant/trim than selected.

REMOVAL:

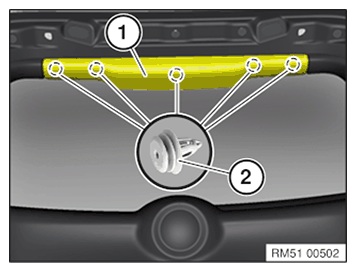

Release cover (1) from clips (2).

Fig 1: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove cover (2).

Replacement:

Fig 2: Additional Brake Light, Plug Connection And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Connect plug connections.

Clip in cover (1).

NOTE: Replace faulty clips (2).

Fig 3: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
