51 43 148 Removing and installing or replacing trim panel on left or right door post (top)

WARNING: This page is about a different variant/trim than selected.

REMOVAL:

Release front door edge protection in area of trim panel (1).

Release trim panel (1) from clamps (2).

Feed out trim panel (1) downwards and remove.

Fig 1: Releasing Trim Panel From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Complete removal only:

Release screw (1).

Feed out seat belt strap (2) and remove door post trim panel.

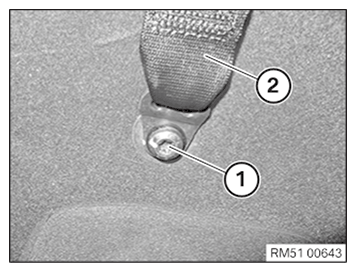

Fig 2: Seat Belt Strap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Complete removal only:

Feed in seat belt strap (2) into door post trim panel.

Tighten screw (1).

Tightening torque 72 11 2AZ .

Fig 3: Seat Belt Strap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in trim panel (1) upwards.

Engage trim panel (1) in clamps (2).

Ensure correct fit to edge protection for front door.

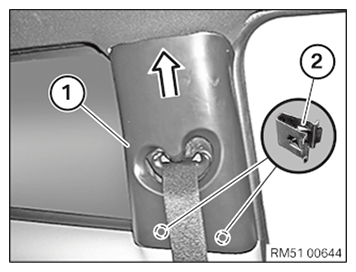

Fig 4: Installing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
