51 21 370 Removing and installing/replacing the cover on the bottom left or right of the front door

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Removal:

Unclip the clips (2) along the dotted line using special tool 2 298 505 .

Remove cover (1).

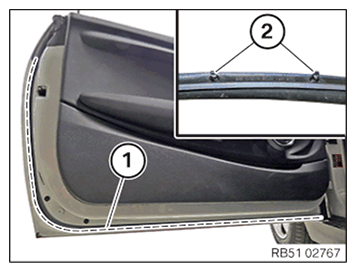

Fig 1: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The clips (2) of the cover (1) must not be damaged or missing.

Fig 2: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Clip in the clips (2) along the dotted line.

Fig 3: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
