51 21 170 Removing and installing/replacing the outer door handle of front door on the left or right

WARNING: This page is about a different variant/trim than selected.

Removal:

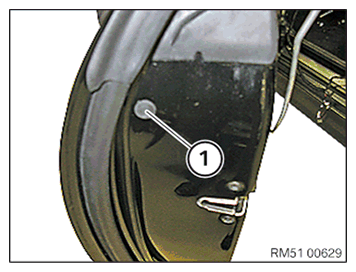

Lever out cover (1) and release screw underneath.

NOTE: Undo the screw only until the outer door handle is detached.

Fig 1: Screw Cover

G11649188

Courtesy of BMW OF NORTH AMERICA, INC.

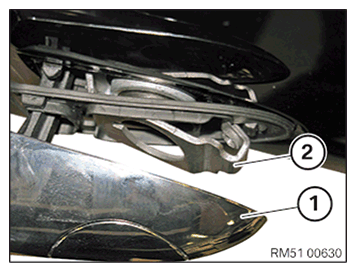

Pull out outer door handle (1) and feed out retaining plate (2).

Fig 2: Outer Door Handle And Retaining Plate

G11649189

Courtesy of BMW OF NORTH AMERICA, INC.

Pull outer door handle (1) towards the rear and feed out.

If necessary, unlock associated plug connections and disconnect.

Remove outer door handle.

Fig 3: Removing Outer Door Handle

G11649190

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connections.

Feed in outer door handle into front opening.

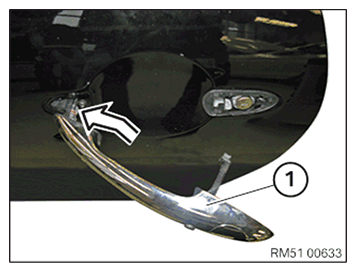

Fig 4: Installing Outer Door Handle

G11649191

Courtesy of BMW OF NORTH AMERICA, INC.

Use string (2) to pull lock actuation (1) outwards and hold in position.

Install outer door handle and insert correctly into lock actuator (1).

Pull out string (2).

Fig 5: String And Lock Actuator

G11649192

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out outer door handle (1) slightly and feed in retaining plate (2).

Ensure gasket (3) is seated correctly.

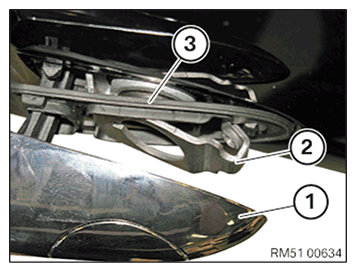

Fig 6: Outer Door Handle, Retaining Plate And Gasket

G11649193

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolt and mount cover (1).

Tightening torque 51 21 5AZ .

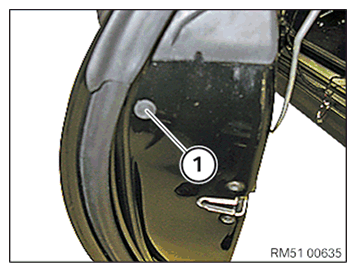

Fig 7: Screw Cover

G11649194

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out function check with door open!
