51 47 312 Replacing footrest for front vehicle interior

Removal:

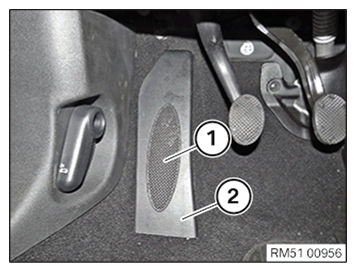

Unclip the cover (1) from the footrest (2).

Fig 1: Cover And Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

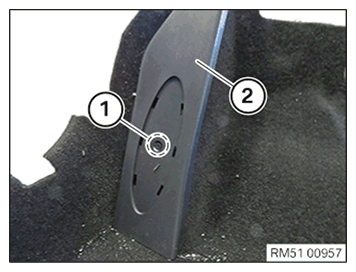

If necessary, loosen the screw in this area (1).

The footrest (2) has been bonded to the carpet.

Pull off the footrest (2) from the carpet or cut at the adhesive.

Fig 2: Footrest And Screw Loosening Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position the new footrest (2) on the carpet.

Drill out this area (1) using a Ø 5 mm drill.

Fig 3: Footrest And Screw Loosening Area

Courtesy of BMW OF NORTH AMERICA, INC.

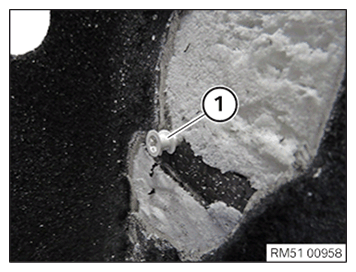

Screw the plug (1) into the bore hole.

Fig 4: Plug And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

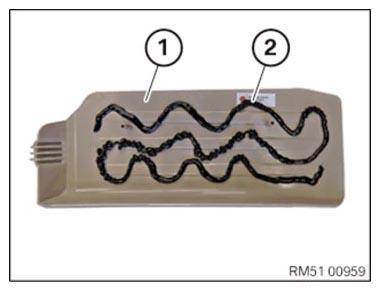

Pre-treat the footrest (1) using primer 206.

Apply an adhesive bead (2) with Ø 5 mm to the footrest (1).

Fig 5: Identifying Adhesive Bead Application Area On Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

Bond the new footrest (2) to the carpet and tighten in this area (1) using the screw.

Fig 6: Footrest And Screw Loosening Area

Courtesy of BMW OF NORTH AMERICA, INC.
