51 47 161 Removing and installing/replacing right luggage compartment wheel arch panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

REMOVAL:

Open lid (1).

Fig 1: Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel filler cap emergency operation.

Fig 2: Fuel Filler Cap Emergency Operation

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1).

Fig 3: Luggage Compartment Wheel Arch Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and release bolt underneath.

Release screw (2) and remove cover (3).

Fig 4: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and release bolt underneath.

Remove lashing eye.

Release expanding rivet (2).

Feed out and remove luggage compartment wheel arch panel.

Fig 5: Cover And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

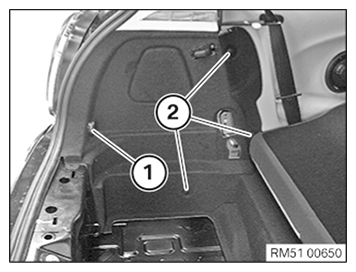

Feed in luggage compartment wheel arch panel.

Mount expanding rivets (2).

Position lashing eye, tighten bolt and mount cover (1).

Fig 6: Cover And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

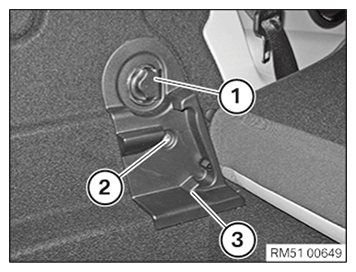

Position cover (3).

Tighten bolt and mount cover (1).

Tighten screw (2).

Fig 7: Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

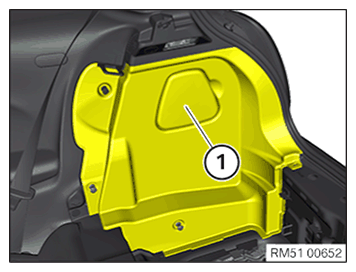

Mount cover (1).

Fig 8: Luggage Compartment Wheel Arch Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

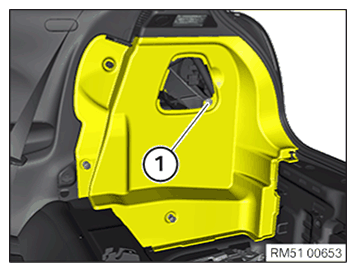

Attach fuel filler cap emergency operation.

Fig 9: Fuel Filler Cap Emergency Operation

Courtesy of BMW OF NORTH AMERICA, INC.

Install end cover (1).

Fig 10: Lid

Courtesy of BMW OF NORTH AMERICA, INC.
