51 13 000 Remove and install/replace front ornamental grille center section (Cooper JCW)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Removal:

Release latch mechanisms (1) and remove front ornamental grille (2).

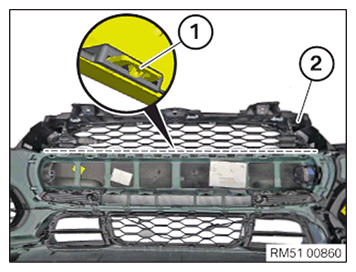

Fig 1: Latch Mechanisms On Front Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Latch mechanisms (1) must not be damaged.

Engage radiator grille (2) on latch mechanisms (1).

Fig 2: Latch Mechanisms On Front Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.
