51 71 412 Removing and installing/replacing rear spoiler (Cooper JCW)

Removal:

Lift out seal plug (1) and release screws underneath.

Fig 1: Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear spoiler (1) on left and right from the clips (2).

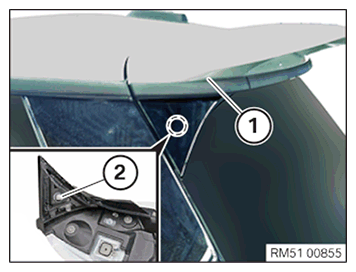

Fig 2: Rear Spoiler And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release rear spoiler (1) from latch mechanisms starting on one side and remove towards rear.

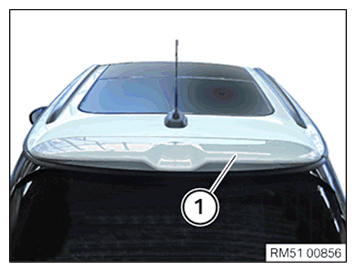

Fig 3: Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount rear spoiler (1) and engage in the latch mechanisms.

Fig 4: Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in rear spoiler (1) on left and right into clips (2).

Fig 5: Rear Spoiler And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws.

Tightening torque 51 71 3AZ .

Mount seal plug (1).

Fig 6: Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.
