51 11 Removing and installing/replacing the air inlet frame for the left or right brake ventilation duct (Cooper S)
WARNING: This page is about a different variant/trim than selected.
Removal:

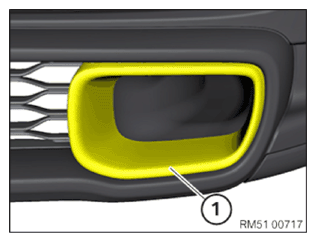

Unclip the frame (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Clip in the frame (1).
Detents on frame (1) must not be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
