13 71... Removing the acoustic cover (B36, B38, B46, B48)

WARNING: This page is about a different car, the 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, 2015 MINI Cooper, and 2014 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Pull acoustic cover (1) up and out of the rubber mount and remove.

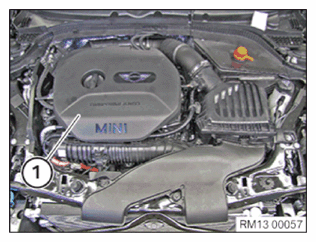

Fig 1: Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure rubber mount is correctly fitted on acoustic cover.

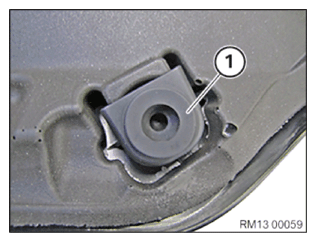

Fig 2: Rubber Mount On Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Attach acoustic cover (1) to locating pins.

Fig 3: Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.
