Removing and installing/replacing exhaust camshaft (B48A/B46A) (Cooper S and John Cooper Works)

Special tools required:

Preliminary work needed:

Removal:

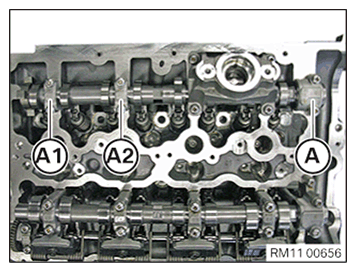

NOTE: The bearing caps are legibly labeled with (A1 and A2)  on the intake side.
The bearing cap (A)  is a thrust bearing.
G11645108Courtesy of BMW OF NORTH AMERICA, INC.

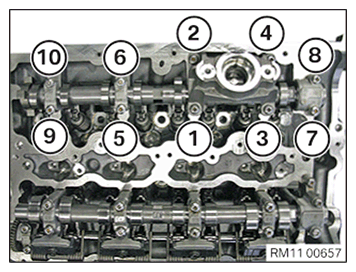

Release all screws in the sequence 10 - 1  in 1/2 turns.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480.

Fig 1: Bearing Caps Screws Loosening Sequence
G11645109Courtesy of BMW OF NORTH AMERICA, INC.

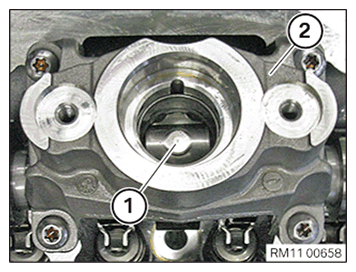

Remove roller tappet (1).

Remove high-pressure pump bracket (2).

G11645110Courtesy of BMW OF NORTH AMERICA, INC.

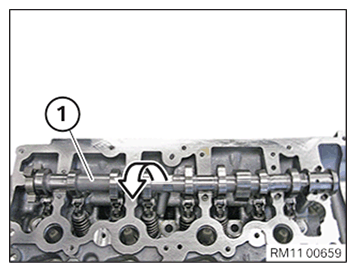

Take exhaust camshaft (1) out of cylinder head.

G11645111Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attention!

Installation on engine:

Set engine to ignition TDC at cylinder No. 1.

Removed cylinder head:

When using special tool 11 9 000, it will be necessary to remove the aluminum strip.

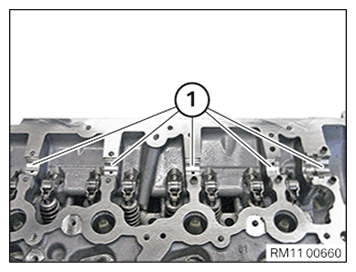

Moisten all bearing positions (1) with motor oil.

G11645112Courtesy of BMW OF NORTH AMERICA, INC.

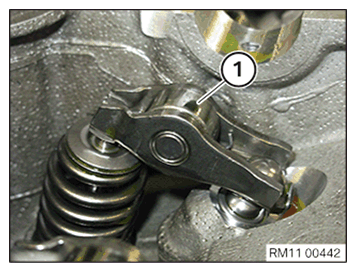

NOTE: Prior to installation of exhaust camshaft, ensure proper installation position of rocker arm (1).
Coat exhaust camshaft and bearing caps with motor oil.
G11645113Courtesy of BMW OF NORTH AMERICA, INC.

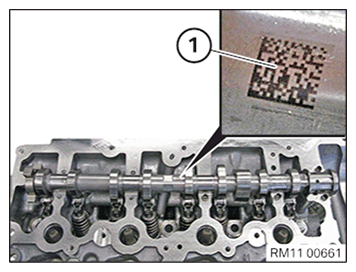

Engage the exhaust camshaft into the cylinder head so that the data code (1) is pointing upwards.

G11645114Courtesy of BMW OF NORTH AMERICA, INC.

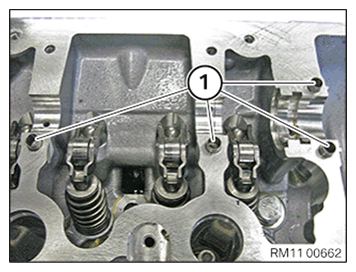

NOTE: Check the lining sleeves (1) for proper fit and for damage.
G11645115Courtesy of BMW OF NORTH AMERICA, INC.

Coat the exhaust camshaft and the bearing shells with motor oil.

Position all bearing shells on cylinder head.

NOTE: The bearing caps are legibly labeled with (A1 and A2)  on the intake side.
The bearing cap (A)  is a thrust bearing.
G11645108Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 8.8.

G12700664Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 10.9.

G12700665Courtesy of BMW OF NORTH AMERICA, INC.

Coat both bearing positions on the high pressure pump carrier with motor oil.

Position the high pressure pump carrier on the cylinder head.

Press down on the bearing caps and hand tighten the screws incrementally in the sequence 1 - 10.

Join  the screws in the sequence 1 - 10  in half turns.

Observe the joining torque 11 31 1AZ .

Tighten  all screws in the sequence 1 - 10.

Tightening torque 11 31 1AZ .

Fig 2: Bearing Caps Screws Tightening Sequence
G11645109Courtesy of BMW OF NORTH AMERICA, INC.

Install the roller tappet (1) in the high pressure pump carrier (2).

G11645110Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
