Removing and installing/replacing engine mounting bracket

Preliminary work needed:

• Remove right ENGINE MOUNT .

Removal:

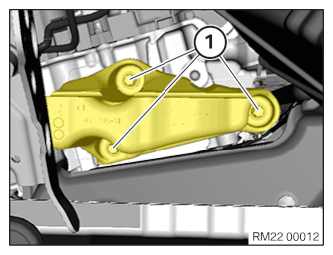

Unscrew the screws (1).

Remove engine mounting bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten down screws (1).

Tightening torque 22 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install right ENGINE MOUNT .
