Removing and installing complete bearing bracket for foot pedal (automatic transmission) (Cooper)

Preliminary work needed:

• Read and comply with GENERAL INFORMATION .

Removal:

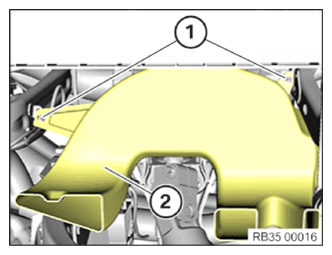

Remove screws (1) and remove footwell air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip (1) from brake pedal, disengage and pull out retaining bolt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on brake light switch.

Undo nut (2) and remove bearing bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install bearing bracket (3).

Fit nut (2) and tighten.

Replace self-locking nuts.

Parts  : Nut

Tightening torque 35 11 1AZ .

Connect plug connection (1) on brake light switch.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert nuts (1) and tighten.

Replace self-locking nuts.

Parts  : Nut

Tightening torque 35 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Grease retaining bolt (1) with lubricating grease NBU 12K (part number: 83 23 9 407 810  ).

Install retaining bolt (1) through brake pedal.

Mount retaining clip (2) on retaining bolt.

Replace retaining clip (2).

Parts  : Retaining clip

Courtesy of BMW OF NORTH AMERICA, INC.

Install footwell air duct (2).

Insert screws (1) and tighten.

Courtesy of BMW OF NORTH AMERICA, INC.
