Replacing left radial shaft seal on differential (8-speed, AISIN GA8F22AW) (Cooper Clubman base AWD, Cooper Clubman S AWD, Cooper Clubman JCW)

Special tools required:

• 23 0 490
• 2 405 249

Preliminary work needed:

• Remove LEFT OUTPUT SHAFT .
• Remove INTAKE FILTER HOUSING .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

Drive a hole into radial shaft seal using a center punch.

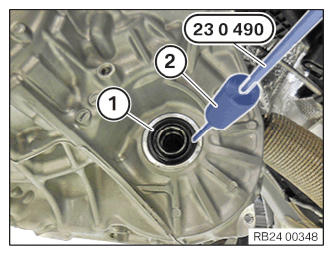

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal (1) with clean transmission oil.

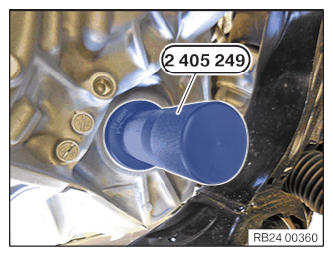

Radial shaft seal firmly home with special tool 2 405 249.

Required follow-up work:

• Install LEFT OUTPUT SHAFT .
• Check TRANSMISSION OIL LEVEL .
• Install INTAKE SILENCER HOUSING .
