Stationary wheel balance (Cooper)

Special tools required:

• 36 1 010
• 36 1 020

Preliminary work needed:

• Remove wheel

Remove any fitted balancing weights, stones in tread pattern and larger contaminants.

Check tire pressure, check tire for condition, damage, flat spots (out-of-round caused by e.g. stopping the car with hot tires); if necessary, check wheel and tire for radial and axial runout.

Courtesy of BMW OF NORTH AMERICA, INC.

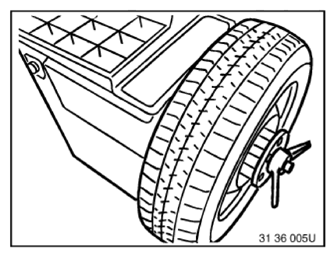

Use BMW-approved wheel centering of relevant balancing machine manufacturers.

1. Base flange
2. Wheel centering element
3. Type flange
4. Clamping nut

Courtesy of BMW OF NORTH AMERICA, INC.

Also refer to section on BMW's Workshop Equipment.

Courtesy of BMW OF NORTH AMERICA, INC.

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

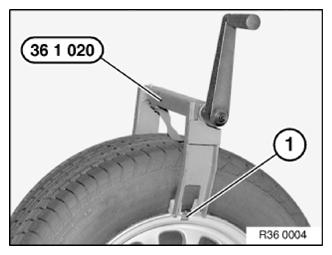

1. Gently press off tire sidewall with special tool 36 1 020 at appropriate point from rim flange.
2. Install retaining clamp (1).
3. Remove special tool 36 1 020.

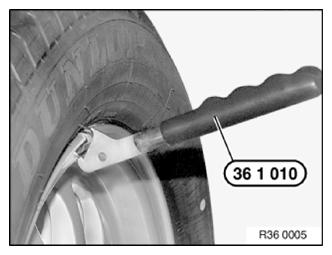

Raise retaining clamp with special tool 36 1 010.

Slide balance weight underneath and allow it to snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

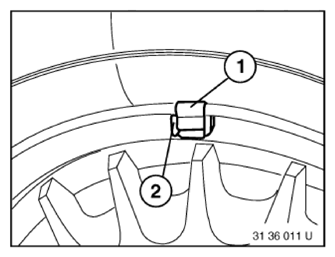

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

Courtesy of BMW OF NORTH AMERICA, INC.

1. retaining spring
2. Balance weight

Adhesive weights must be used on all other light- alloy rims.

Max. imbalance per wheel.

1. Carefully remove any adhesive weights. Do not damage rim when doing so.
2. Select suitable location for lining.
3. Clean adhesive area thoroughly.
