Checking front and rear wheel for lateral and radial runout (Cooper)

Special tools required:

• 36 1 030

Preliminary work needed:

• Check wheel bearings

Raise vehicle.

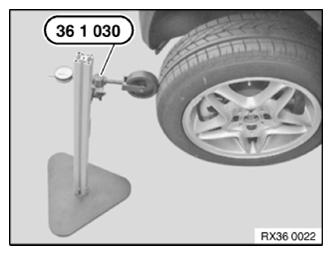

Check wheel with special tool 36 1 030 (measuring device) for axial runout.

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring device) for radial runout.

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check axial runout of rim with special tool 36 1 030 (measuring device).

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of wheel rim with special tool 36 1 030 (measuring device).

Courtesy of BMW OF NORTH AMERICA, INC.
