Replacing left or right tie rod (Cooper)

Special tools required:

• 2 287 009

Attention!

If the surface of the rack is damaged (e.g. by corrosion), then the steering gear must be replaced!

Preliminary work needed:

• Remove the WISHBONE .

Removal:

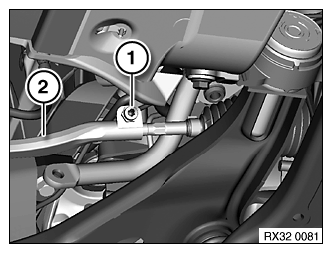

Slacken nut (1).

Release tie rod (2) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

• Determine the dimension (A) to simplify the following setting of the front axle

Loosen clamping bolt (1) and unscrew tie rod end.

Courtesy of BMW OF NORTH AMERICA, INC.

Before disassembly, clean the tie rod, bellows and area around the bellows in order to prevent dirt ingress!

Loosen the CLIP  (1).

Detach the bellows (2) from the steering gear.

Courtesy of BMW OF NORTH AMERICA, INC.

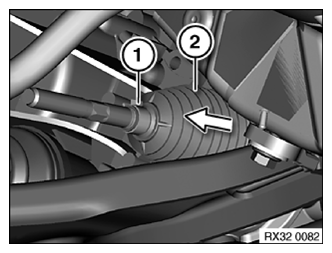

Loosen the clip (1).

Detach bellows (2) from tie rod.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

To avoid damage to the rack and to the suspension mounting, shift out the rack only as far as necessary!

Release the tie rod (axial joint) from the rack of the steering gear by means of special tool 2 287 009.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Unscrew the tie rod end from the new tie rod.

Screw on the tie rod (axial joint) on the rack.

Tighten the tie rod (axial joint) by means of special tool 2 287 009.

Tightening torque 32 21 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Grease tie rod at the fit of the bellows (1) with grease "FB-1 BMW part number 2 208 093".

Courtesy of BMW OF NORTH AMERICA, INC.

Before the installation of the bellows, lightly grease the steering gear at the seat of the bellows with FB-1 lubricating grease.

Mount the bellows (2) to the steering gear.

Part  : Replace the clip (1).

Secure the CLIP  (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the bellows (2) on the tie rod.

Secure the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Screw the tie rod end onto the tie rod until the dimension (A) is reached.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the tie rod (2) into the swivel bearing.

Part  : Replace nut (1).

Tighten nut (1).

Tightening torque 32 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten clamping bolt (1).

Tightening torque 32 21 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the WISHBONE .
• Perform either KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION  or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
