Replacing safety pressure switch

Special tools required:

• 00 9 030

Refrigerant circuit is under high pressure!

Follow safety instructions for handling R134a refrigerant. Refer to: NOTE FOR HANDLING R134A REFRIGERANT  or SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A

Avoid contact with refrigerant and refrigerant oil.

Follow safety instructions for handling REFRIGERANT OIL .

Restart engine only when air conditioning has been correctly filled.

Follow INSTRUCTIONS  for opening and replacing parts in refrigerant circuit.

If air conditioning is opened for more than 24 hours:  Replace capacitor for HEATING AND AIR CONDITIONING SYSTEM .

Preliminary work needed:

• Drain off AIR CONDITIONING SYSTEM .
• Remove right HEADLIGHT .

Removal:

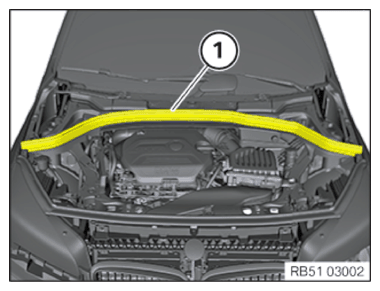

Detach gasket (1) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

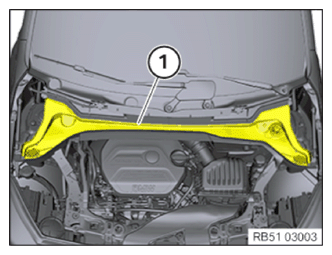

Lift off windshield panel cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

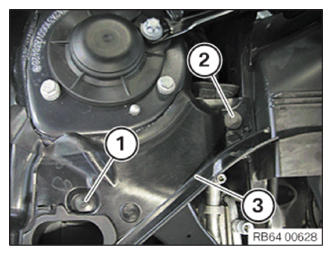

Release expansion rivet (1).

Remove screw (2).

Remove cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and open coolant line clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1).

Remove coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release safety pressure switch (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten safety pressure switch (2).

Tightening torque 64 53 8AZ .

Join and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position coolant line (2) correctly.

Tighten screw (1).

Use special tool 00 9 030 to mount sealing rings without damaging them.

Courtesy of BMW OF NORTH AMERICA, INC.

Close and lock coolant line clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (3) and secure with expanding rivet (1).

Tighten screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in windshield panel cover (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Press gasket (1) towards the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install right HEADLIGHT .
• Evacuate and fill AIR CONDITIONING .
