Removing and installing/replacing rear cabin fresh air grille (High A/C system)

Preliminary work needed:

• Remove rear center CONSOLE TRIM .

Removal:

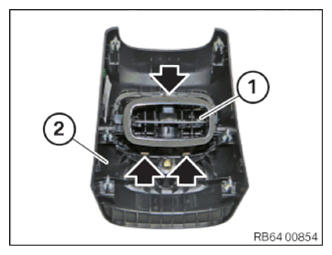

Unlock detents.

Remove fresh air grille (1) from trim (2) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position fresh air grille (1) correctly on trim (2) and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install rear center CONSOLE TRIM .
