Removing and installing or replacing left fresh air grille

Special tools required:

• 64 1 030

Removal:

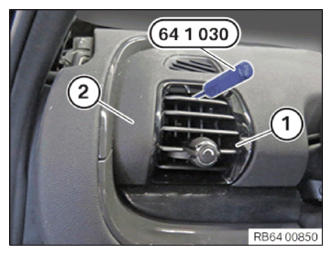

Pull out fresh air grille (1) from dashboard 64 1 030 with special tool (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

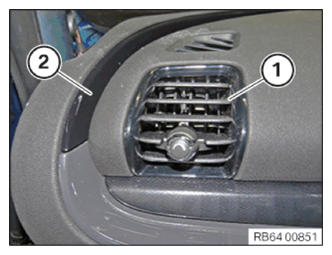

Position fresh air grille (1) correctly and engage in dashboard (2).

Courtesy of BMW OF NORTH AMERICA, INC.
