Removing and installing/replacing actuator drive for fresh/recirculated air flap

Preliminary work needed:

• Remove bottom right DASHBOARD TRIM PANEL .

Removal:

Loosen the screw (1) and feed out the air duct (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

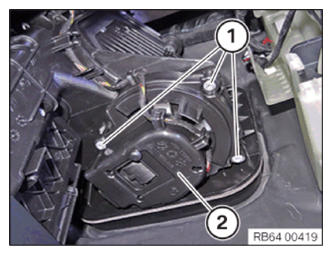

Unscrew the screws (1).

Unlock associated plug connection and disconnect.

Remove actuator drive with holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove screw (1).

Unlock detents (2).

Remove actuator drive (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position actuator drive (3).

Lock detents (2).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position actuator drive with holder (2).

Tighten down screws (1).

Join and lock associated plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the air duct (2) and correctly engage at heating and air-conditioning unit.

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Addressing can only be carried out with the BMW diagnostic system.

Service functions:

• Body
• Heating/air conditioning function
• Flap motor
• Readdress flap motors

Required reworking:

• Install bottom right instrument panel TRIM PANEL .
