Checking/topping up oil level in rear axle final drive (AWD)

WARNING: Poisoning hazard if oil is ingested/absorbed through the skin! Risk of injury if oil comes into contact with loops and skin!

IMPORTANT: Risk of damage!

To avoid serious damage to the rear axle differential, it is essential to use only BMW approved transmission oils in the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

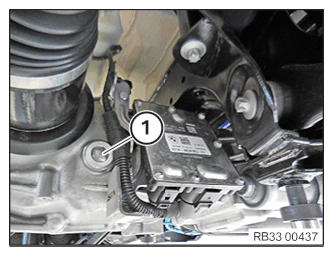

Open screw plug (1).

Check oil level.

If necessary, pour in final drive oil up to lower edge of opening for screw plug (1).

Replace screw plug (1) with O-ring.

Parts: Plug Apply screw plug (1).

Tightening torque 33 11 1AZ .

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .
