Raising vehicle with floor jack (FWD)

Observe the following trolley-jack-related notes:

1. Only floor jacks sold or approved by BMW, with a rubber plate on their stand, may be used!
2. Floor jacks must be regularly serviced and always checked for functional reliability before they are used!
3. Check the rubber plate on the floor jack prior to each use, replacing if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

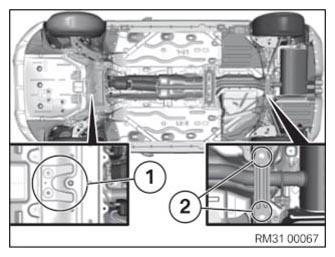

1. Center of front axle support

   Risk of damage!

   Align the rubber plate on the floor jack with the front axle support so as to prevent contact with and therefore damage to the underbody protection.

   Courtesy of BMW OF NORTH AMERICA, INC.

2. Cross-member/bridge screw connection, rear axle support
