Raising vehicle with floor jack (AWD)
Observe the following trolley-jack-related notes:
- Only floor jacks sold or approved by BMW, with a rubber plate on their stand, may be used!
- Floor jacks must be regularly serviced and always checked for functional reliability before they are used!
- Check the rubber plate on the floor jack prior to each use, replacing if necessary.
WARNING:

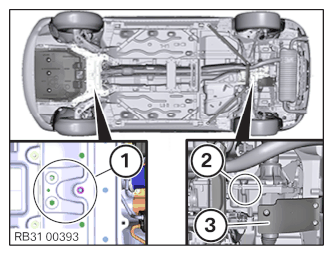

The vehicle may be raised with a floor jack only at the following mounting point!
- Center of front axle support
Risk of damage!
Align the rubber plate on the floor jack with the front axle support so as to prevent contact with and therefore damage to the underbody protection.
- Rear axle differential
Risk of damage!
Align the rubber plate on the floor jack with the rear axle support so that the cover (3) does not make contact and therefore be damaged.
