72 11 101 Removing and installing/replacing rear center safety belt

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Removing BACKREST FRAME

Removal:

NOTE: Shown here without backrest cover and upholstery for a better overview

Shift backrest cover with upholstery upwards.

Release screw (1) on rear of backrest.

Remove seat belt retractor from backrest frame in upwards direction.

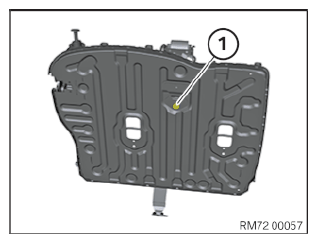

Fig 1: Locating Backrest Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Electrically motorized reel is coded against incorrect installation.

Attach seat belt retractor to backrest frame.

Replace screw (1).

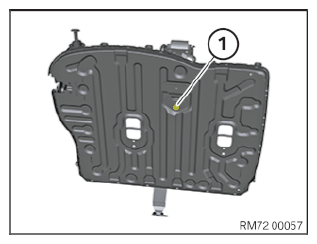

Fig 2: Backrest Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on rear of backrest.

Tightening torque 72 11 20AZ .

Required follow-up work:

Install BACKREST FRAME
