72 11 096 Removing and installing/replacing rear left or right lower strap

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove REAR SEAT

Removal:

Unlock and disconnect the connector (1).

Remove screw (2).

Remove lower strap lining (3).

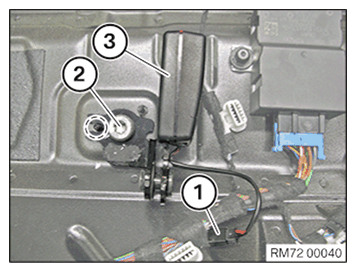

Fig 1: Locating Seat Belt Lower Strap Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install lower strap (3).

NOTE: Lower strap is encoded against incorrect assembly (3).

Replace screw (2).

Tighten screw (2).

Tightening torque 72 11 23AZ .

Connect the connector (1).

Fig 2: Locating Seat Belt Lower Strap Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REAR SEAT
