72 00... Replacing the seat belt clip

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 040

NOTE: If the position of the seat belt clip (1) cannot be identified, the position of the seat belt clip on the opposite side of the vehicle is used.

Insert the belt clip (1) in the previous position on the safety belt (2).

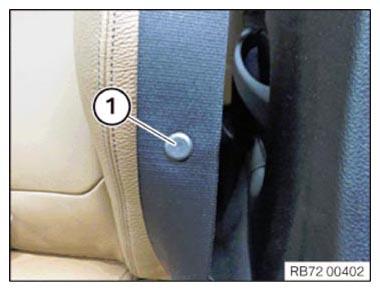

Fig 1: Seat Belt Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the counterpiece (1).

Press the belt clip with special tool 00 5 040 .

Check that the belt clip and counterpiece (1) are firmly seated.

NOTE: If the seat belt clip is pressed too firmly, the counterpiece may loosen (1).

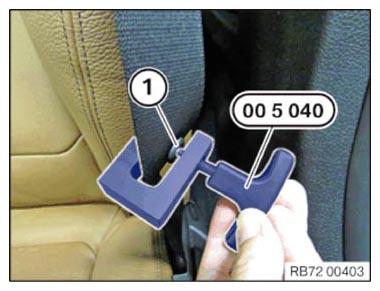

Fig 2: Pressing Seat Belt Clip Using Special Tool (00 5 040)

Courtesy of BMW OF NORTH AMERICA, INC.
