72 12 004 Removing and installing/replacing airbag module for driver's knee protection
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY INSTRUCTIONS .
Failure to observe correct procedures can deploy the airbag and cause injuries.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Removal:

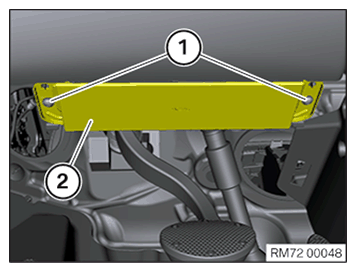

Unscrew the screws (1).
Remove airbag module (2) downwards.

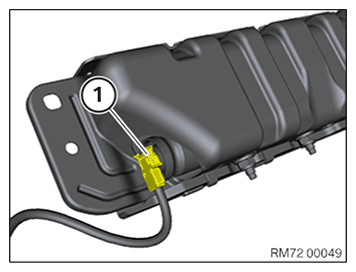

Unlock and disconnect the connector (1).
Remove airbag module.
Installation:
Connect the connector (1).
Position airbag module (2).
Tighten down screws (1).
NOTE:
Replace screws (1).
Tightening torque 72 12 2AZ .
NOTE:

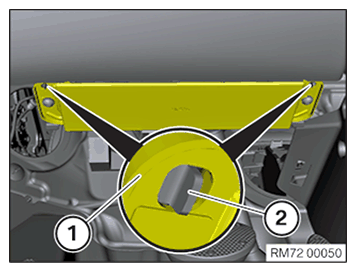

Make sure airbag module (1) is correctly fitted on guides (2).
