61 61 131 Replacing both wiper blades (Denso)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not come in contact with the windshield without its wiper blade.

Preliminary work needed:

Remove BOTH WIPER BLADES

Removal:

IMPORTANT: Do not damage the metal rods.

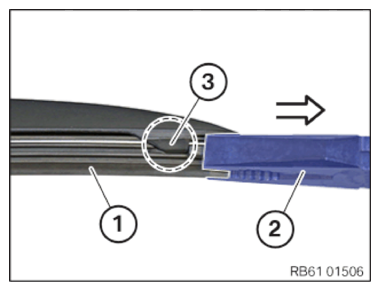

Pull out the wiper blade (1) from the wiper blade (3) in the direction of the arrow using a suitable tool (2).

Fig 1: Pulling Out Wiper Blade

G11110336

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out the wiper blade (1) including the metal rods in the direction of the arrow.

Fig 2: Locating Wiper Blade

G11110337

Courtesy of BMW OF NORTH AMERICA, INC.

Remove both metal rods (1) from the available wiper blades.

Fig 3: Removing Metal Rods From Wiper Blades

G11110338

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

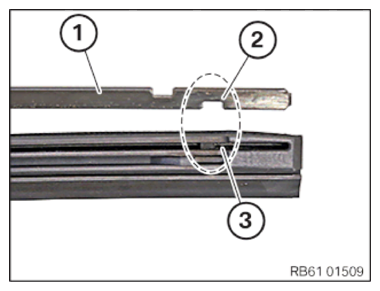

Insert both metal rods (1) with the groove (2) on both sides of the wiper blade (3).

Fig 4: Inserting Both Metal Rods With Groove

G11110339

Courtesy of BMW OF NORTH AMERICA, INC.

Insert wiper blade (1) including metal rods into the wiper blade (2).

Fig 5: Inserting Wiper Blade

G11110340

Courtesy of BMW OF NORTH AMERICA, INC.

Apply light pressure to the wiper blade (1) and push it in the direction of the arrow until the wiper blade (2) has engaged in the groove (3) on both sides.

Fig 6: Applying Light Pressure To Wiper Blade

G11110341

Courtesy of BMW OF NORTH AMERICA, INC.
