61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Removal:

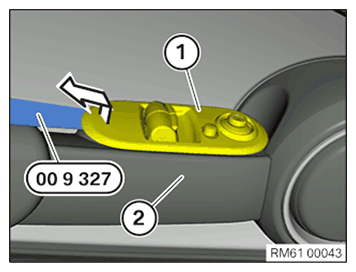

Lever power window switch (1) out of armrest (2) in arrow direction using special tool 00 9 327 .

Disconnect connector underneath and remove power electric windows switch (1).

Fig 1: Locating Lever Power Window Switch Out Of Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

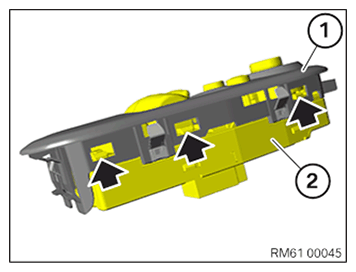

Release detents on both sides and feed power window switch (1) out of trim (2).

Join switch spare part for power electric windows (1) in cover (2).

NOTE: Ensure detent of switch for power electric windows (1) in cover (2) is correct.

Fig 2: Removing Detents On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

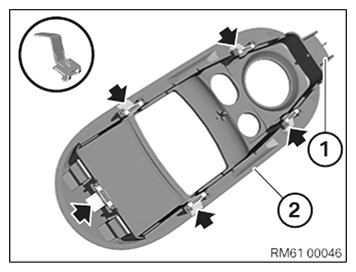

NOTE: The guide (1) and detents (2) on the trim (3) must not be damaged or missing.

Fig 3: Locating Detents On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector.

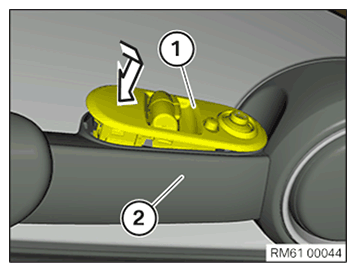

Join power electric windows switch (1) in armrest (2) in arrow direction.

NOTE: Make sure that the power window switch is correctly seated in the armrest.

Fig 4: Joining Power Electric Windows Switch In Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
