61 31 116 Replacing the rocker switch for rear power electric windows

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off the working area.

Removal:

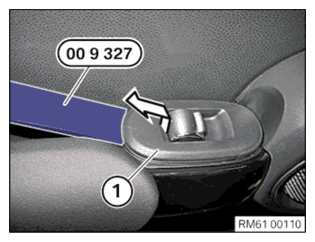

Lever the rocker switch for the power electric windows (1) out of the armrest in arrow direction using special tool 00 9 327 .

Fig 1: Locating Lever Rocker Switch For Power Electric Windows

G11789550

Courtesy of BMW OF NORTH AMERICA, INC.

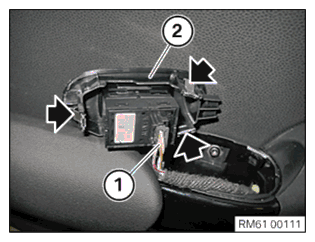

Unlock the connector (1) on the rocker switch for the power electric windows (2) and disconnect.

Fig 2: Locating Connector On Rocker Switch For Power Electric Windows

G11789551

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release all detents on trim (1) at both sides.

Remove the rocker switch for the power electric windows (2) from the trim (1).

Fig 3: Removing Rocker Switch For Power Electric Windows From Trim

G11789552

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The metal clamps on the trim (2) must not be damaged or missing.

Connect the connector (1).

Fig 4: Locating Connector On Rocker Switch For Power Electric Windows

G11789551

Courtesy of BMW OF NORTH AMERICA, INC.

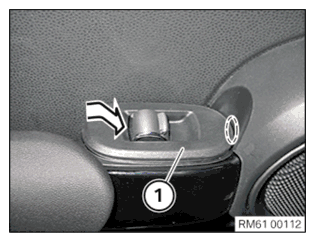

Insert the rocker switch for the power electric windows (1) into the armrest in arrow direction.

Fig 5: Inserting Rocker Switch For Power Electric Windows Into Armrest

G11789554

Courtesy of BMW OF NORTH AMERICA, INC.
