61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When carrying out repair work on trim panels, make sure that the sensitive surfaces are not scratched or damaged.

Preliminary work needed:

Remove INSTRUMENT PANEL TRIM AT BOTTOM LEFT

Removal:

Loosen the screws (2) on the light operating unit (1).

Remove the light operating unit (1) from the bottom instrument panel trim panel (3).

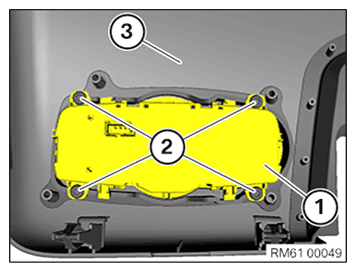

Fig 1: Removing Light Operating Unit From Bottom Instrument Panel Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the light operating unit (1) into the bottom instrument panel trim panel (3).

Tighten down screws (2).

Tightening torque 61 31 1AZ .

Fig 2: Removing Light Operating Unit From Bottom Instrument Panel Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
