41 11 311 Replacing entrance for door front left

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only an approved SPOT WELDER for repairs!

The following new parts are required:

A-pillar, outer

Fig 1: Outer A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

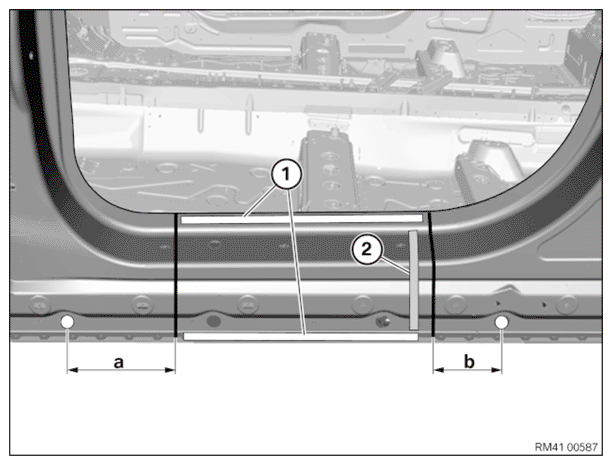

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension "a" = approx. 175 mm after 25 mm dia. hole.

Dimension "b" = approximately 115 mm before 25 mm dia. hole.

Open welded connections in areas (1).

Release and remove partial section of entrance from cavity sealing (2).

Fig 2: Outer A-Pillar Welded Connections Areas, Severance Cut Areas, And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Installation:

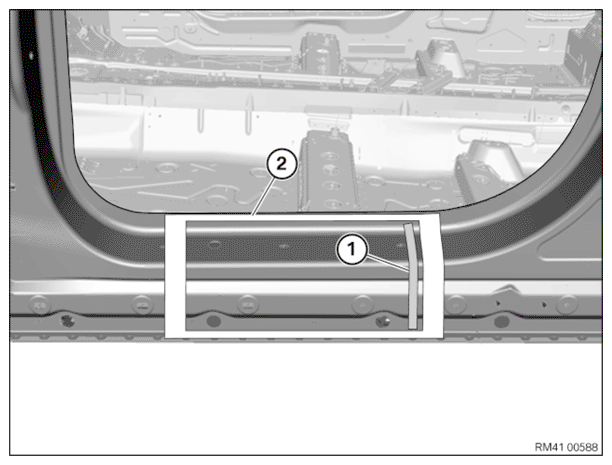

Apply sealant to CAVITY SEALING (1).

Install new part and reinforcement plate and weld in area (2).

Fig 3: Cavity Sealing And Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.
