41 11 072 Replacing engine mount with front right wheel arch in front of bulkhead

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Observe special procedure for vehicle identification number (order body new part with vehicle identification number if required).

Refer to procedure in repair instructions for LEFT SIDE and transfer schematically to the vehicle.

Preparation of new part:

Prepare new parts in areas (1) up to (3) for joints through welding.

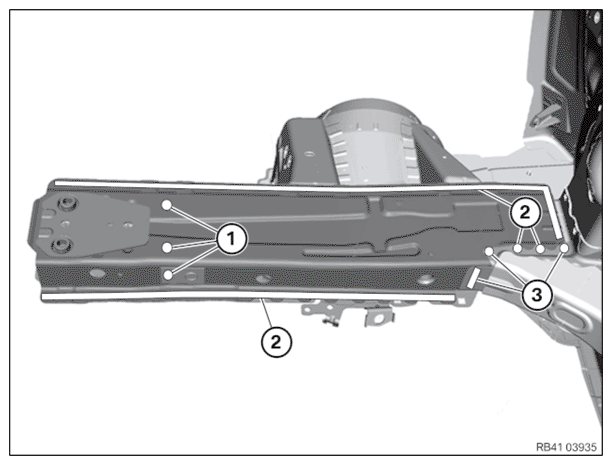

Fig 1: New Part Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All 3 panels must be welded to each other in areas (3).

Increase size of holes in areas (3) (open welded connections) top Ø 10 mm. Transfer holes to new engine mount internal part and drill.

Installation:

Install new parts and reinforcement plate to fit with alignment bracket or universal fixture.

Fig 2: Weld-Joints And Bore Hole Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in areas (1) to (3).
