41 21 XXX Replacing left or right C-pillar reinforcement (tail panel and rear quarter panel removed)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 3 .

Use only an approved SPOT WELDER for repairs!

The following new parts are required:

C-pillar
C-pillar, inner

Fig 1: C-Pillar And Inner C-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

Open welded connections in area (1).

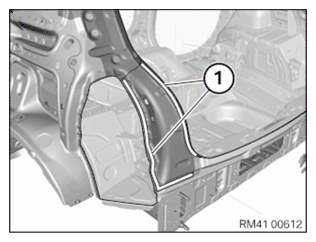

Fig 2: Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension and cut.

IMPORTANT: Cut outer metal panel only.

Dimension "a" = approx. 30 mm from 6.5 mm dia. hole.

Remove reinforcement on C pillar.

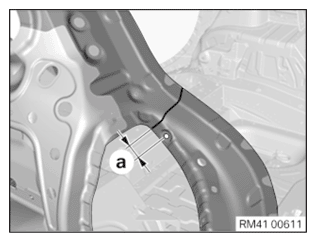

Fig 3: Severance Cut Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark and cut the severance cut on new part as per the severance cut on the vehicle.

Prepare REINFORCEMENT PLATE at severance cut.

Prepare new parts for joining by welding.

Adjust new parts in combination with tail panel and side panel.

NOTE: The tail panel serves as a positioning aid in this operation and during installation. The new parts are not welded to the tail panel during installation. The joining of the tail panel takes place via the bonded rivet technology.

Installation

Install new parts in combination with tail panel.

Weld new parts in areas (1).

NOTE: Do not weld new parts to tail panel.

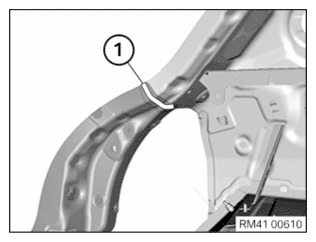

Fig 4: Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in areas (1).

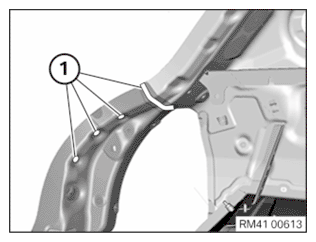

Fig 5: Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.
