41 21 203 Replacing B-pillar, outer left

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only an approved SPOT WELDER for repairs!

The following new parts are required:

Side frame, outer
Reinforcement plate, sill

Fig 1: Outer Side Frame And Sill Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension "a" = approx. 145 mm after center point of 25 mm dia. hole.

Dimension "b" = approx. 85 mm before center point of 25 mm dia. hole.

Dimension "c" = approx. 90 mm below center point of 8 mm dia. hole.

Open welded connections in areas (1).

Release B-pillar from cavity sealings (2) and remove.

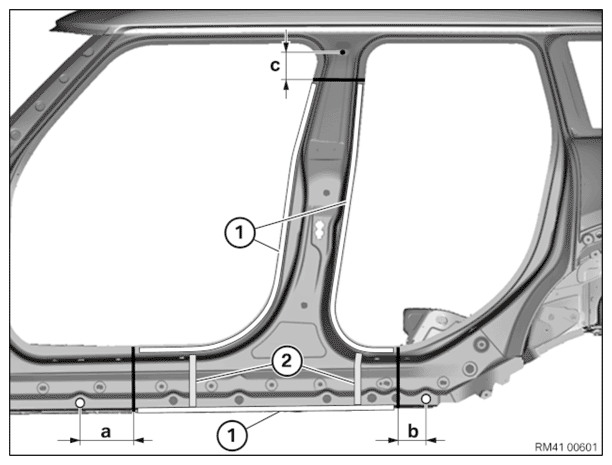

Fig 2: Severance Cuts, Welded Connections Areas, And Cavity Sealings

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Fit in new part.

Installation:

Coat CAVITY SEALINGS (1) with sealant.

Install new part and reinforcement plate and weld in area (2).

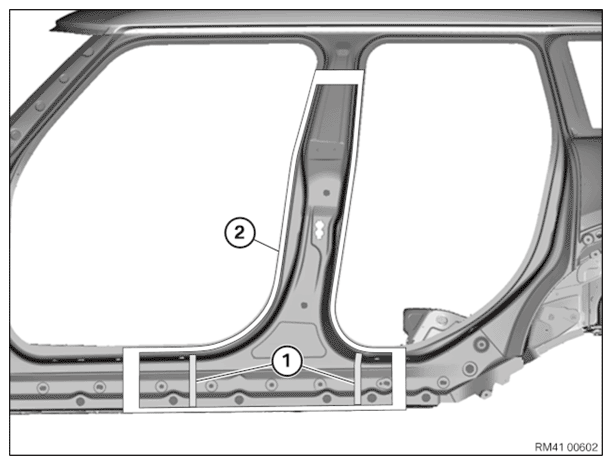

Fig 3: Cavity Sealings Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
