41 12 700 Stripping operations - Replacing luggage compartment floor and left side member (rear quarter panel and tail panel removed)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Release nuts and remove heat shield (1).

Remove the heat shield via the exhaust pipe. (not shown).

Release grommets (2).

Detach wiring harness at attachment points (3).

Installation note:

Ensure correct installation of the grommets (watertightness).

Fig 1: Heat Shield, Grommets, And Wiring Harness Attachment Points
G11648774Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove exhaust system holder.

Tightening torque 18 20 2AZ .

Fig 2: Exhaust Bracket Screw
G11648775Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release holder (2) and lay towards front.

Release wiring harness at attachment point (3).

Release grommets (4).

Fig 3: Grommets, Holder, Attachment Point For Wiring Harness, And Plug Connection
G11648778Courtesy of BMW OF NORTH AMERICA, INC.

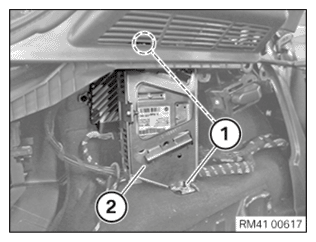

Unscrew nuts (1). Place the holder (2) for the control unit towards the front.

Fig 4: Holder For Control Unit
G11788040Courtesy of BMW OF NORTH AMERICA, INC.

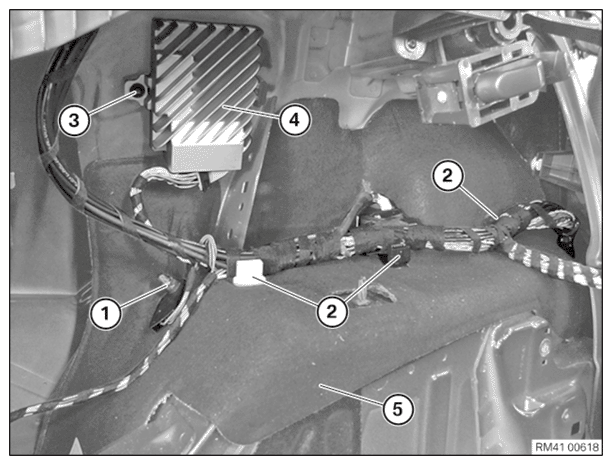

Release nut (1) for ground connection. Remove ground connection.

Tightening torque 41 34 1AZ .

Release wiring harness at attachment points (2).

Release the screw (3) and lay the control unit (4) towards the front.

Release insulating mat (5) and tie forwards.

Fig 5: Ground Connection Nut, Control Unit, Screw, Wiring Harness Attachment Points, And Insulating Mat
G11788041Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove unlocking mechanism (2).

Release screws (3) and remove holders.

Tightening torque 52 26 3AZ .

Fig 6: Unlocking Mechanism And Screws
G11648779Courtesy of BMW OF NORTH AMERICA, INC.
