11 66 000 Removing and installing or replacing vacuum pump (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is possible to remove and install the oil/vacuum pump without removing the transmission.

Necessary preliminary tasks:

Remove OIL SUMP

REMOVAL:

Release screws (1) of oil/vacuum pump (2).

Fig 1: Locating Screws Of Oil/Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil/vacuum pump (1).

Fig 2: Oil/Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Feed oil/vacuum pump (1) out of drive chain (2) and remove.

Fig 3: Oil/Vacuum Pump And Drive Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1). Remount intake pipe (2).

Tighten down screws (1).

Tightening torque: 11 41 1AZ .

Fig 4: Locating Intake Pipe And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

IMPORTANT:

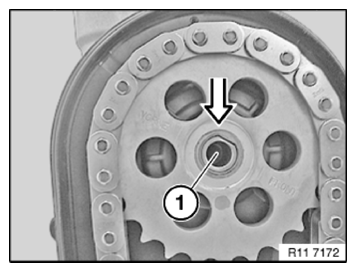

Pay attention to mounting flats (1) on oil pump (see arrow).

The label "Front" must be visible.

NOTE: Illustration shows N47.

Fig 5: Mounting Flats On Oil Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

IMPORTANT:

Screw (1) has left-hand thread.

"Front" (3) must be readable.

Hold down camshaft sprocket (2) with a suitable tool. Release screw (1). Remount camshaft sprocket.

Fig 6: Camshaft Sprocket, Front Marking, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace screw (1).

Mount camshaft sprocket (2) and hold down with a suitable tool. Tighten screw (1).

Tightening torque: 11 41 4AZ .

INSTALLATION:

IMPORTANT:

Sealing ring (3) must not be damaged or missing.

Check centering bushes for damage, replace if necessary.

Feed oil/vacuum pump (1) into drive chain (2).

Fig 7: Oil/Vacuum Pump And Drive Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil/vacuum pump (1).

Fig 8: Oil/Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) of oil/vacuum pump (2).

Tightening torque: 11 41 2AZ .

Fig 9: Locating Screws Of Oil/Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.
