11 21 531 Replacing all crankshaft main bearing shells (B36A/B38A)

Special tools required:

• 00 2 010

Installation note:

Bearing classification from 1 to 3  (bearing cap) and A to C  (crankcase) possible.

• Bearing color blue
• Bearing color - green
• Bearing color brown

Necessary preliminary tasks:

• Remove CRANKSHAFT

Pay attention to the different bearing classification sequences in the crankcase and the bearing caps.

Bearing classification in crankcase: A/B/C

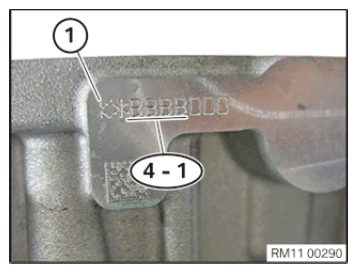

The code letter (1) K  on the crankcase stands for "Kupplungsseite" (English = clutch end).

The following code letters (4 - 1) describe the bearing positions 4  to 1  from left to right.

Example (see illustration):

Bearing seat 4:

Code letter B=  green bearing shell with lubricating groove.

Bearing seat 3:

Code letter B=  green bearing shell with lubricating groove (thrust bearing).

Bearing seat 2:

Code letter B=  green bearing shell with lubricating groove.

Bearing seat 1:

Code letter B=  green bearing shell with lubricating groove.

Fig 1: Bearing Classification In Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing classification in bearing cap: 1/2/3

The code numbers (1-4) describe the bearing positions 1  to 4  from left to right.

Example (see illustration):

Bearing cap 1:

Code 2=  green bearing shell without lubricating groove.

Bearing cap 2:

Code 2=  green bearing shell without lubricating groove.

Bearing cap 3:

Code 2=  green bearing shell without lubricating groove (thrust bearing).

Fig 2: Bearing Classification In Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing cap 4:

Code 2=  green bearing shell without lubricating groove.

Enter code letters and numbers for crankcase and crankshaft

Remove bearing shells 1 to 4.

Fig 3: Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Place main bearing shell (1) with lubricating groove in crankcase (see arrows).

Observe combination of bearing colors according to the table.

Fig 4: Positioning Bearing Shell Lubricating Groove In Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Place main bearing shell (1) with no lubricating groove in the bearing cap (see arrows).

Observe combination of bearing colors according to the table.

Fig 5: Positioning Bearing Shell Lubricating Groove In Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Observe combination of bearing colors according to the table.

Fig 6: Thrust Bearing On Crankshaft At Bearing Position 3

Courtesy of BMW OF NORTH AMERICA, INC.

Install CRANKSHAFT .

Check side clearance. Refer to technical data for CRANKSHAFT WITH BEARING .

If necessary, check guide bearing shells, crankshaft and engine block.

Fig 7: Checking Crankshaft Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate crankshaft (1) with special tool 00 2 010 in direction of arrow.

Check friction value of crankshaft. Refer to technical data for CRANKSHAFT WITH BEARING .

Fig 8: Turning Crankshaft With Special Tool (00 2 010)

Courtesy of BMW OF NORTH AMERICA, INC.
