11 31... Notes on checking and adjusting the timing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 288 380

IMPORTANT:

Risk of damage to engine.

These notes for checking and adjusting the timing must be strictly observed!

If the crankshaft is fixed properly, it is not possible to turn the engine forwards or backwards on the vibration damper.

Vehicles with manual transmission:

Dimension (x) = 56 mm.

Insert the special tool 2 288 380 up to dimension (X) into the dowel hole.

Fig 1: Inserting Special Tool (2 288 380) Into Dowel Hole

G11774419

Courtesy of BMW OF NORTH AMERICA, INC.

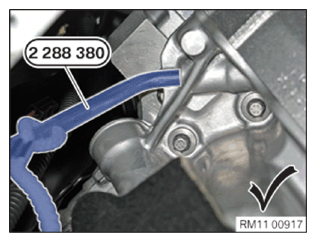

Vehicles with manual transmission:

Special tool 2 288 380 correctly positioned.

The engine is located at the first cylinder at TDC.

Fig 2: Special Tool (2 288 380) Correct Position

G11774420

Courtesy of BMW OF NORTH AMERICA, INC.

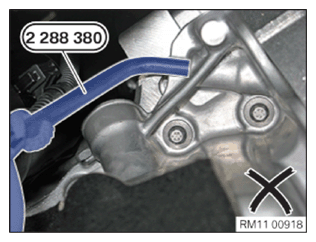

Vehicles with manual transmission:

Special tool 2 288 380 incorrectly positioned.

The TDC setting of the first cylinder has not been achieved.

Fig 3: Special Tool (2 288 380) Incorrect Position

G11774421

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Dimension (Y) = 66 mm.

Insert the special tool 2 288 380 up to dimension (Y) into the dowel hole.

Fig 4: Inserting Special Tool (2 288 380) Into Dowel Hole

G11774422

Courtesy of BMW OF NORTH AMERICA, INC.

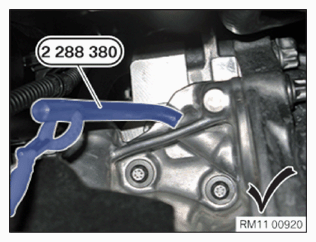

Vehicles with automatic transmission:

Special tool 2 288 380 correctly positioned.

The engine is located at the first cylinder at TDC.

Fig 5: Special Tool (2 288 380) Correct Position

G11774423

Courtesy of BMW OF NORTH AMERICA, INC.

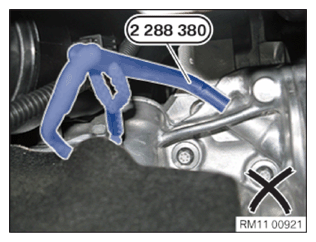

Vehicles with automatic transmission:

Special tool 2 288 380 incorrectly positioned.

The TDC setting of the first cylinder has not been achieved.

Fig 6: Special Tool (2 288 380) Incorrect Position

G11774424

Courtesy of BMW OF NORTH AMERICA, INC.
